MySQL单机改造成HA方案的配置

IT那活儿 / 1898人阅读
MySQL单机改造成HA方案的配置
一. MySQL HA改造背景

因目前某业务系统MySQL数据库为单节点,为提高数据库的高可用性,降低MySQL对业务的停机风险,经研究决定将MySQL数据库由现有的单实例改造成双主架构。


二. MySQL HA环境准备

2.1  系统环境准备

CentOS 7.9  64位

192.168.1.113(master1)
192.168.1.115(master2)

2.2  禁用selinux(双主节点)

vi /etc/sysconfig/selinux
SELINUX=disable

2.3  设置用户的文件句柄及进程数(双主节点)

Vim /etc/security/limits.conf
shsnc   soft   nproc     2047
shsnc   hard  nproc    16384
shsnc   soft   nofile    16384
shsnc   hard  nofile    65536
shsnc   soft   stack     10240

2.4  系统内核参数优化(双主节点)

Vim /etc/sysctl.conf
vm.swappiness = 0
net.ipv6.conf.all.disable_ipv6 = 1
net.core.somaxconn = 65535
net.core.netdev_max_backlog = 65535
net.ipv4.tcp_max_syn_backlog = 65535
net.ipv4.tcp_fin_timeout = 10
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_tw_recycle = 1
net.ipv4.tcp_keepalive_intvl = 30
net.ipv4.tcp_keepalive_probes = 3
net.ipv4.tcp_keepalive_time = 600
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576
net.ipv4.ip_local_port_range = 40000 65500
kernel.sem = 250 32000 100 128
vm.min_free_kbytes = 524288
kernel.shmmni = 4096
kernel.shmall = 2097152
kernel.shmmax = 2542751744
vm.min_free_kbytes=524288
kernel.shmall = free/4
kernel.shmmax = free*1024*0.8


三. MySQL HA配置过程

3.1  部署MySQL服务器(双主节点)

  • 安装mysql数据库

在Oracle官网下载对应版本的mysql免编译二进制安装包解压即可。

  • 配置mysql

配置mysql master节点:

Vim  /home/mysql/my_cnf/my.cnf
[mysql]
port=3306
socket=/data/mysql/tmp/mysql.sock
default-character-set=utf8

[mysqld_safe]
log-error=/data/mysql/log/mysql.error

[mysqld]
port=3306
user=shsnc
basedir=/home/shsnc/mysql
datadir=/data/mysql/data
socket=/data/mysql/tmp/mysql.sock
pid-file=/data/mysql/log/mysql.pid
character-set-server=utf8
skip-name-resolve
lower_case_table_names=1
transaction_isolation=READ-COMMITTED
server_id=1
autocommit=1
tmp_table_size=128M
max_heap_table_size=96M
max_connections=1000
max_connect_errors=6000
long_query_time=1
innodb_buffer_pool_size=16G
innodb_flush_log_at_trx_commit=0
innodb_log_buffer_size=8M
innodb_log_file_size=128M
innodb_log_files_in_group=2
innodb_file_per_table=1
innodb_flush_method=O_DIRECT
innodb_write_io_threads=8
innodb_read_io_threads=4
innodb_doublewrite=0
innodb_purge_threads=1
innodb_stats_on_metadata=OFF
innodb_io_capacity=1000
log-bin-trust-function-creators=1
sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER
event_scheduler=on
max_allowed_packet=2G
slow_query_log=1
auto_increment_offset=1
auto_increment_increment=2
#replication
log_bin=/data/mysql/log/bin.log
log_bin_index=/data/mysql/log/bin.index
sync_binlog=1
master_info_repository=TABLE
relay_log_info_repository=TABLE
sync_binlog=1
log_slave_updates
binlog_format=ROW
binlog_rows_query_log_events=1
relay_log=/data/mysql/log/relay.log
relay_log_recovery=1
slave_skip_errors=ddl_exist_errors
slave-rows-search-algorithms=INDEX_SCAN,HASH_SCAN
#gtid
enforce_gtid_consistency=1
gtid_mode=ON
master_info_repository=table
relay_log_info_repository=table
slave_parallel_type=logical_clock
slave_parallel_workers=4
slave_pending_jobs_size_max=1G
slave_preserve_commit_order=1
sync_master_info=1
sync_relay_log_info=1

注:配置slave节点的时候只需修改server_id选项即可。

  • 启动mysql服务

mysqld_safe --defaults-file=/home/mysql/my_cnf/my.cnf &
  • 创建mysql复制账号

create userrepl@192.168.1.% identified with mysql_native_password by xxxxxx;
grant REPLICATION SLAVE, REPLICATION CLIENT on *.* to repl@192.168.1.%;
flush privileges;
  • 配置双主同步

配置113同步到115:

CHANGE MASTER TO
   MASTER_HOST=192.168.1.113,
   MASTER_USER=repl,
   MASTER_PASSWORD=xxxxxx,
   MASTER_PORT=3306,
   MASTER_AUTO_POSITION=1;
Start slave;

配置115同步到113:

CHANGE MASTER TO
   MASTER_HOST=192.168.1.115,
   MASTER_USER=repl,
   MASTER_PASSWORD=xxxxxx,
   MASTER_PORT=3306,
   MASTER_AUTO_POSITION=1;
Start slave;

查看slave状态,Show slave statusG,若 IO、SQL进程状态都为YES则配置OK。


3.2 配置mysql HA高可用(双主节点)

  • 安装keeepliaved
./configure --prefix=/opt/keepalived && make && make install
  • 配置keeepliaved

配置keepalived MASTER路由器

vi /opt/keepalived/etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {
    notification_email {
       shsnc@shsnc.com
   }
    notification_email_from smtp.163.com
    smtp_server 127.0.0.1
    smtp_connect_timeout 30
    router_id LVS_DEVEL
}
vrrp_script checkk_mysql {
    script "/opt/keepalived/script/check_mysql.sh"
    interval 5
    fall 3
    rise 2
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 110120
    }
    virtual_ipaddress {
        135.10.51.8
    }
    track_script {
        checkk_mysql
    }
    notify_master "/opt/keepalived/script/keepalived_notify.sh master"
    notify_backup "/opt/keepalived/script/keepalived_notify.sh backup"
}

注:BACKUP路由器只需修改优先级选项即可。

HA实时监测脚本,检查 mysql 进程是否存在,如果mysql挂了就停止keepalived,使VIP漂移到BACKUP机器上

Vim /opt/keepalived/script/check_mysql.sh

A=`ps -C mysqld --no-header |wc -l`
if [ $A -eq 0 ]
then
    /bin/systemctl stop syskeepalived
fi

HA切换执行脚本:

Vim /opt/keepalived/script/keepalived_notify.sh

#!/bin/bash
. ~/.bash_profile
#mysql user
DB_USER="root"

#mysql user password
DB_PASSWORD=shsnc!@#
MYSQL_SOCK=""
#mysql_bin
MYSQL_BIN="/home/shsnc/mysql/bin/mysql"
#mysql client command
MYSQL_CMD="${MYSQL_BIN} -u${DB_USER} -p${DB_PASSWORD}"
#query the killed seesions id sql
MYSQL_SQL="select concat(kill ,id,;) from information_schema.processlist where user not in (system user,repl,replic,backup,bkpuser,bomcjk,root,myrobot)"
#关闭事件任务
AMP_EVENT_PARTITION_DISABLE="ALTER event domp.event_add_partitions ON COMPLETION PRESERVE DISABLE"
DOMP_EVENT_PARTITION_DISABLE="ALTER event amp.event_add_partitions ON COMPLETION PRESERVE DISABLE"
#开启事件任务
AMP_EVENT_PARTITION_ENABLE="ALTER event domp.event_add_partitions ON COMPLETION PRESERVE ENABLE"
DOMP_EVENT_PARTITION_ENABLE="ALTER event amp.event_add_partitions ON COMPLETION PRESERVE ENABLE"
#define function: get mysql service information
function get_mysql_infor()
{
    for sock in `ps -ef | grep mysqld | grep --socket= | awk -F--socket= {print $2} | awk {print $1}`
    do
        MYSQL_SOCK="${MYSQL_SOCK}$(echo $sock)"
    done
}
#define function: mysql kill sessions
function kill_sessions()
{
    #receive a mysql socket file parameter
    #my_sock=$(get_mysql_infor)
  unset MYSQL_SOCK
  get_mysql_infor

    # kill session
    #..................
    #begin to kill mysql sessions
    ${MYSQL_CMD} -S ${MYSQL_SOCK} -Ne "${MYSQL_SQL}" 2>/dev/null | ${MYSQL_CMD} > /dev/null 2>&1
}
#define function: set mysql read_only mode
function set_readonly()
{
    #receive mysql socket file && read_only sign parameter
    #my_sock=$(get_mysql_infor)
  unset MYSQL_SOCK
  get_mysql_infor

    my_sign=$1
    #begin to set mysql read_only mode
    ${MYSQL_CMD} -S ${MYSQL_SOCK} -Ne "set global read_only=${my_sign}" 2>/dev/null
}
#define function: keepalived state changed to master
function Keepalived_changed_to_master()
{
  #my_sock=$(get_mysql_infor)
  unset MYSQL_SOCK
  get_mysql_infor
#开始事件任务
${MYSQL_CMD} -S ${MYSQL_SOCK} -Ne "${AMP_EVENT_PARTITION_ENABLE} 2>/dev/null "
${MYSQL_CMD} -S ${MYSQL_SOCK} -Ne "${DOMP_EVENT_PARTITION_ENABLE} 2>/dev/null "
  Seconds_Behind_Master=$(${MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Seconds_Behind_Master | awk -F": " {print $2})
  Slave_IO_Running=$(${MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Slave_IO_Running | awk -F": " {print $2})
  Slave_SQL_Running=$(${MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Slave_SQL_Running | awk -F": " {print $2})
  Master_Log_File=$(${MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Master_Log_File | awk -F": " {print $2})
  Relay_Master_Log_File=$({MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Relay_Master_Log_File | awk -F": " {print $2})
  Read_Master_Log_Pos=$({MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Read_Master_Log_Pos | awk -F": " {print $2})
  Exec_Master_Log_Pos=$({MYSQL_CMD} -S ${MYSQL_SOCK} -e "show slave statusG" | grep -w Exec_Master_Log_Pos | awk -F": " {print $2})
  echo
  #
    if [ "${Slave_IO_Running}" = "Yes" -a "${Slave_SQL_Running}" = "Yes" ]
    then
        if [ $Seconds_Behind_Master -eq 0 ]
        then
            echo 判断复制无延迟,即将切换
            #.........set mysql no read_only mode.........
            set_readonly 0
            exit 0
        fi
    fi
    if [ "${Slave_IO_Running}" = "Connecting" -a "${Slave_SQL_Running}" = "Yes" ]
    then
        if [ "${Master_Log_File}" = "${Relay_Master_Log_File}" -a "${Read_Master_Log_Pos}" = "${Exec_Master_Log_Pos}" ]
        then
            echo "主库宕机,即将切换"
            #.........set mysql no read_only mode.........
            set_readonly 0
            exit 0
    fi
    fi
}
#define function: keepalived state changed to backup
function Keepalived_changed_to_backup()
{
  #my_sock=$(get_mysql_infor)
  unset MYSQL_SOCK
  get_mysql_infor
${MYSQL_CMD} -S ${MYSQL_SOCK} -Ne "${AMP_EVENT_PARTITION_DISABLE} 2>/dev/null "
${MYSQL_CMD} -S ${MYSQL_SOCK} -Ne "${DOMP_EVENT_PARTITION_DISABLE} 2>/dev/null "
    #set mysql read_only mode
  set_readonly 1
  #kill mysql sessions
  kill_sessions
}
#start this shell
case $1 in
    master)
      Keepalived_changed_to_master
        ;;

  backup)
      Keepalived_changed_to_backup
      ;;
  *)
      ;;
esac
  • 启动keepalived

    systemctl start keepalived

  • 观察113/115机器上的日志情况

    tailf /var/logs/message

  • 查看113/115机器上IP信息,查看VIP地址是否起来

    ip  addr

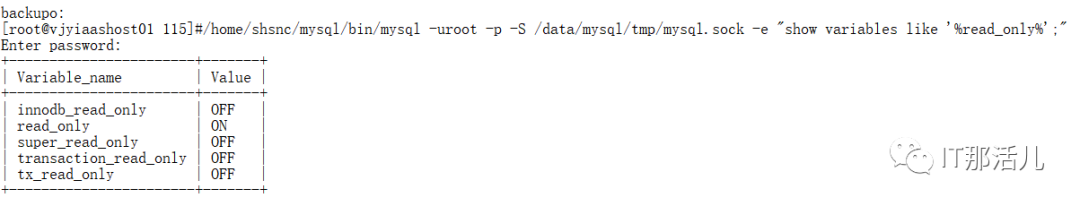

  • 同时模拟keepalived故障时ip漂移情况以及主从节点只读状态设置情况:


四. MySQL HA方案验证

通过上面一系列的配置我们将MySQL+Keepalived配置好了,接下来我们模拟业务通过访问VIP来连接数据库,若ok,则MySQL高可用配置ok。

4.1  在数据库上创建VIP地址白名单账号

GRANT SELECT, INSERT, UPDATE, DELETE, CREATE, DROP, REFERENCES, INDEX, ALTER, CREATE TEMPORARY TABLES, EXECUTE, CREATE VIEW, SHOW VIEW, CREATE ROUTINE, ALTER ROUTINE, EVENT, TRIGGER ON *.* TO shsnc@135.10.66.125 identified by xxxxxx;

4.2  验证MySQL HA

  • 使用mysql客户端命令行通过VIP地址访问数据库:

    mysql -h135.10.51.8 -ushsnc -p

    经测试,通过VIP地址能正常访问到mysql数据库。

  • 应用修改数据库配置文件,并启动应用及测试:

    将配置文件中数据库连接中配置IP 改为 HA方案的虚拟VIP: 135.10.51.8

    经测试,启动应用后,测试业务数据正常,且能正常写入和读取数据,MySQL高可用配置ok。
